Our field crew deploys a track-mounted drill rig and a portable shear vane for rapid on-site assessments across Sunshine Coast's steep terrain. We combine limit-equilibrium methods with finite-element modeling to evaluate factor of safety under static and seismic conditions. Before any analysis, we run a detailed ensayo CPT to obtain continuous cone resistance profiles, which feed directly into the stratigraphic model. The team also collects undisturbed block samples for laboratory triaxial testing. Every project starts with a walkover survey to map tension cracks, seepage zones, and existing retaining structures.
A perched water table in Buderim colluvium dropped the safety factor from 1.6 to 1.1, forcing a redesign with drainage and a reinforced soil wall.
Scope of work
A recent subdivision in Buderim required cutting a 14-meter-high batter through colluvium overlying phyllite. We modeled three failure surfaces using Spencer's method and set instrumentation for real-time pore-pressure monitoring. The analysis showed that a perched water table reduced the factor of safety from 1.6 to 1.1 during heavy rainfall. To verify soil strength parameters, we performed corte directo on undisturbed specimens and cross-checked results with back-calculated values from the existing slope. For the final design, the engineer specified a reinforced soil wall with geogrid layers, and we validated the capacidad de carga of the founding stratum using plate load tests. The client approved a drainage blanket and sub-horizontal drains to keep the water table low.

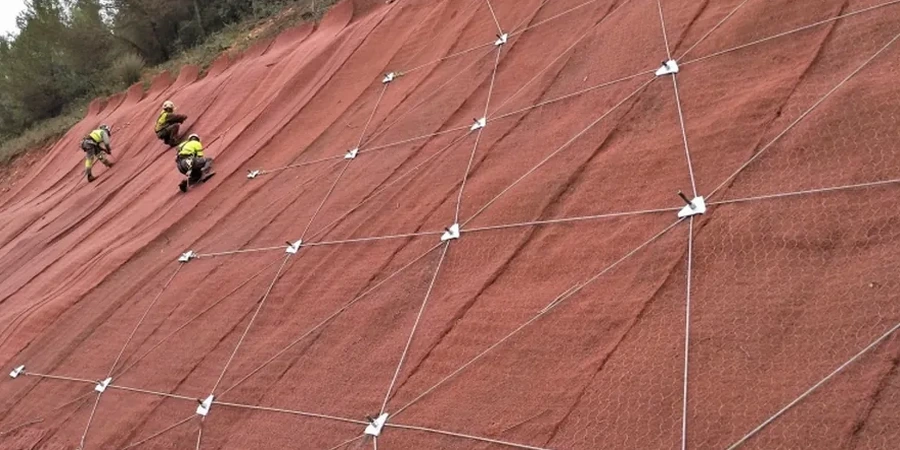

Technical reference image — Sunshine Coast
Area-specific notes
Sunshine Coast's rapid urban expansion into the hinterland has pushed development onto steep slopes underlain by residual soils and weathered rock. Uncontrolled stormwater runoff from uphill lots saturates the colluvium, triggering shallow translational slides. In 2022, a series of wet-season failures along the Eumundi Range damaged several access roads and forced evacuations. Many of these slopes were cut at 1:1 without geotechnical advice. We now see an increasing number of homeowners seeking retroactive stability assessments before selling or extending their properties.
Limit-equilibrium analysis using Bishop, Spencer, and Morgenstern-Price methods, plus 2D finite-element models in RS2 for complex geometries. We calibrate input parameters with lab results and field instrumentation.
02
Retrofit and stabilization design
For existing unstable slopes, we design soil nails, anchored walls, and drainage systems. We also provide construction-phase monitoring with inclinometers and standpipes to verify performance.
What factor of safety does AS 4678 require for permanent slopes?
AS 4678 specifies a minimum factor of safety of 1.5 under static drained conditions and 1.1 under seismic loading. For temporary cuts with low consequence of failure, 1.3 may be acceptable, provided the groundwater regime is well understood.
When do I need a slope stability analysis on the Sunshine Coast?
You need one if your property has a cut or fill slope steeper than 2:1, if Council's development application requires a geotechnical report for a steep block, or if you are planning excavation within 5 meters of a ridgeline. The Sunshine Coast Planning Scheme 2014 (amend. 2024) mandates it for landslip-prone areas.
How much does a slope stability analysis cost in Sunshine Coast?
A typical residential analysis covering site walkover, laboratory testing, numerical modeling, and a report ranges between AU$2,110 and AU$5,660. The final price depends on slope height, access difficulty, and the number of failure surfaces modeled.
What soil conditions cause most failures in this region?
The main culprit is colluvium overlying low-permeability phyllite or schist. After prolonged rain, the colluvium gains weight and loses suction, while the bedrock interface acts as a slip plane. We have also seen failures in completely weathered granite that behaves like loose sand when wet.
