Soil conditions between Buderim and Caloundra differ significantly. We have designed deep excavations in the steep residual soils of Buderim, where high silt content reduces stand-up time. Down near the coastal plain in Caloundra, the profile shifts to alluvial sands and soft estuarine clays. Each ground type demands a different shoring strategy and dewatering approach. For projects in the sandy coastal zone, we often pair the excavation design with a presurometro test to measure in-situ lateral stiffness, or a permeabilidad-campo test to estimate inflow rates before selecting the dewatering method. These local contrasts make a single generic design unreliable for Sunshine Coast.
Deep excavations in Sunshine Coast alluvial sands require dewatering design before any shoring can be finalised. Without it, basal instability is a real risk.
Scope of work
Many local builders underestimate how quickly groundwater rises in Sunshine Coast excavations during the wet season. We always start by reviewing the seasonal water table variations from nearby bore records. Our design process includes:
Numerical analysis of wall deflection and bending moments using finite element software
Selection of support systems such as soldier piles, sheet piles, or secant pile walls
Stability checks against basal heave and bottom blow-in in cohesive soils
Before finalising the shoring layout, we cross-check the soil layering with a clasificacion-suelos from borehole logs. That step prevents surprises during excavation. We also incorporate surcharge loads from adjacent structures and construction equipment, which is critical in tight urban sites near the Maroochydore CBD.

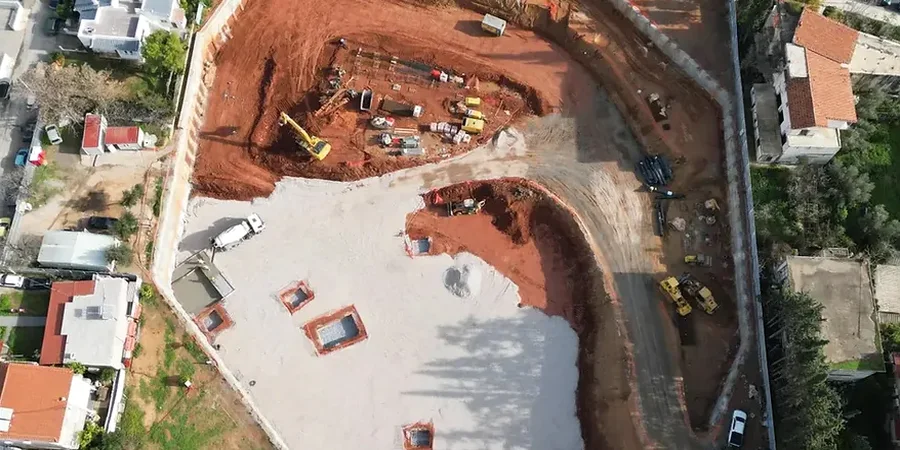

Technical reference image — Sunshine Coast
Area-specific notes
A common mistake we see on Sunshine Coast excavation sites is assuming the soil will stand unsupported for long periods. In the residual clays of Nambour, the soil appears stiff when dry but softens rapidly after rain. We have attended callouts where a temporary slope collapsed within hours of a storm. Another frequent error is ignoring the effect of previous fill layers. Many commercial sites along the Nicklin Way corridor sit on undocumented fill from old land reclamation. Without proper geotechnical design of deep excavations that accounts for this heterogeneous material, wall deflection can exceed tolerable limits and damage adjacent services.
finite element (Plaxis 2D/3D) and limit equilibrium
Support systems
struts, ground anchors, rakers
Monitoring requirements
inclinometers, survey prisms, piezometers
Linked services
01
Shoring design and wall analysis
Design of soldier pile, sheet pile, and secant pile walls with structural checks for bending, shear, and deflection. We calculate embedment depths and strut loads for each strata.
02
Dewatering system design
Sizing of wellpoint systems, deep wells, or cutoff walls based on permeability tests. We estimate inflow rates and drawdown contours for each excavation stage.
03
Monitoring and performance verification
Specification of inclinometer casings, survey prisms, and piezometers. We set trigger levels for wall movement and groundwater changes during construction.
Standards used
AS 1726:2017 Geotechnical site investigations, AS 4678:2002 Earth-retaining structures, CIRIA C760: Guidance on embedded retaining walls
Frequently asked questions
What is the first step in designing a deep excavation in Sunshine Coast?
The first step is a thorough site investigation to define soil layering, groundwater conditions, and any fill or soft zones. We then model the excavation stages using numerical analysis to predict wall movements and select the support system.
What retaining wall types are suitable for deep excavations on the coast?
For depths up to 6 m, soldier piles with timber lagging or sheet piles are common. Beyond that, secant pile walls or diaphragm walls provide better stiffness and water cutoff. The choice depends on soil type and allowable wall deflection.
How is groundwater controlled during excavation?
We use wellpoints for shallow dewatering in sands, deep wells for deeper excavations, and slurry cutoff walls where settlement of adjacent structures is a concern. Each method is sized based on measured permeability and target drawdown.
How much does geotechnical design of deep excavations cost in Sunshine Coast?
The cost ranges from AU$3,050 to AU$14,570 depending on excavation depth, complexity of support system, and monitoring requirements. A typical two-level basement design for a commercial site falls in the middle of that range.
