Under AS 4678-2007, slope failure analysis in Sunshine Coast requires site-specific data on soil shear strength and groundwater conditions. The region's steep terrain and high seasonal rainfall, with over 1,500 mm annually in places like Maleny, make this assessment critical. Our lab combines borehole logging with laboratory triaxial testing to model failure surfaces. For deeper understanding of subsurface conditions, we often integrate the results with a resistivity survey to map water ingress zones.
Shallow translational slides on the Blackall Range are driven by reduced cohesion from seasonal wetting and drying cycles.
Scope of work
Sunshine Coast's geology varies from coastal sands near Mooloolaba to residual clay soils on the Blackall Range. The humidity-driven weathering reduces soil cohesion over time, increasing the likelihood of shallow translational slides. In our experience, the key parameters for slope failure analysis here are effective cohesion (c') and friction angle (phi'), measured via consolidated-drained triaxial tests. We also monitor pore pressure dissipation rates to assess long-term stability.
Shear strength parameters (c', phi') per AS 4678
Groundwater monitoring using piezometers
Limit equilibrium modeling with Bishop and Spencer methods

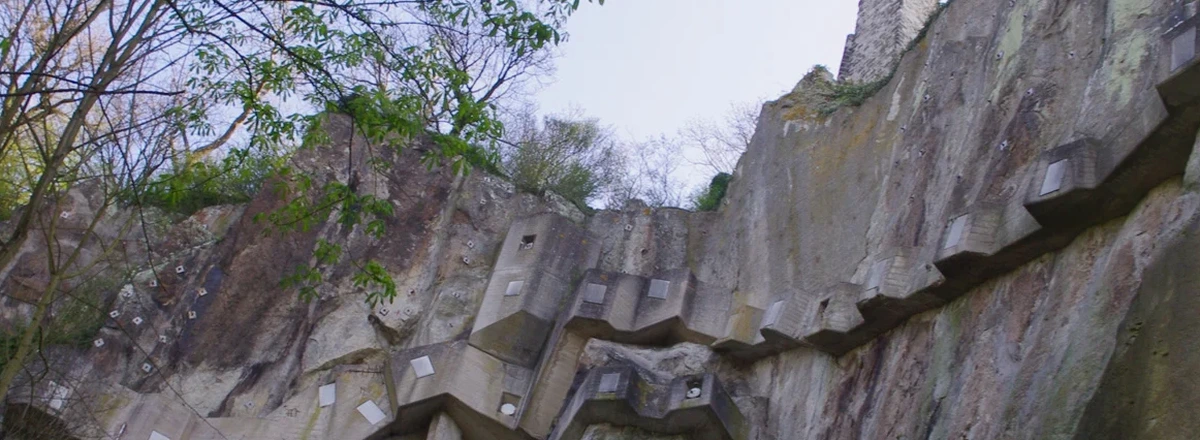

Technical reference image — Sunshine Coast
Area-specific notes
Comparing hillside properties in Buderim versus flatland in Caloundra, the risk profile shifts completely. Buderim's steep ridges underlain by weathered phyllite are prone to rotational failures during prolonged rain, while Caloundra's sandy profiles face liquefaction under seismic loading. Without proper slope failure analysis, homeowners risk foundation cracking and landslip damage. We've seen cases where a simple drainage improvement reduced factor of safety from 1.05 to 1.45—a clear win for early geotechnical input.
Using Bishop's simplified method and Spencer's method to compute factor of safety for circular and non-circular failure surfaces. We input site-specific shear strength from lab tests.
02
Groundwater Monitoring
Installation of standpipe piezometers and vibrating wire sensors to track pore pressure fluctuations across wet-dry cycles, crucial for accurate slope failure analysis.
03
Remediation Design Support
We provide shear strength parameters and failure surface geometry so engineers can design soil nails, drainage blankets, or retaining walls with confidence.
Standards used
AS 4678-2007: Earth-retaining structures, AS 1726-2017: Geotechnical site investigations, AS/NZS 1170.2:2011: Wind actions (for slope drainage design)
Frequently asked questions
What is the minimum factor of safety required for a residential slope in Sunshine Coast?
For static conditions, AS 4678 recommends a factor of safety of 1.5 for long-term stability. For seismic or flood loading, 1.1 is often accepted. Local council may impose stricter criteria for slopes above 15 degrees.
How is the groundwater level measured for slope failure analysis?
We install standpipe piezometers at multiple depths along the slope profile. Readings are taken weekly during wet season and monthly during dry season. The data feeds directly into pore pressure ratio (ru) calculations.
What laboratory tests are used to measure shear strength parameters?
Consolidated-drained triaxial tests (CD) on undisturbed samples give effective cohesion and friction angle. For fast-draining sandy soils, direct shear tests per AS 1289.6.2.2 are preferred. Both methods are NATA-accredited.
How much does a standard slope failure analysis cost in Sunshine Coast?
A full analysis including field drilling, lab testing, and modeling typically ranges between AU$1,360 and AU$4,220. The final price depends on slope height, access difficulty, and number of boreholes required.
