A common mistake we see on Sunshine Coast projects is assuming sandy soils will always drain fast enough for on-site wastewater or stormwater infiltration. That assumption often backfires when a perched water table or thin clay lens appears just below the surface. Without a properly conducted infiltration test using either the Porchet or double-ring infiltrometer method, the design flow rate remains a guess. Our field team has tested across coastal and hinterland sites here, and the variability between a well-drained dune sand and a silty sand over B horizon can be dramatic. Getting the measured infiltration rate right avoids costly redesigns and compliance failures under the Plumbing and Drainage Act.

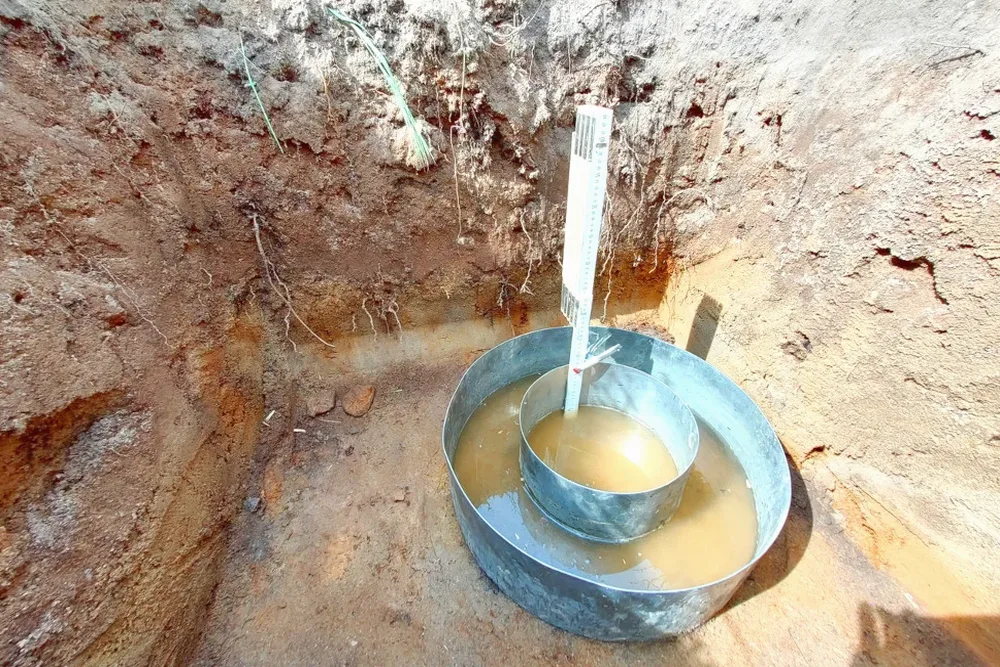

Illustrative image of Infiltration test (Porchet/Double-ring infiltrometer) in Sunshine Coast
A single infiltration test on a dry day can overestimate the design rate by 300% if the perched water table is ignored.

Scope of work

When we run infiltration tests in Sunshine Coast, one observation stands out: the double-ring infiltrometer gives far more repeatable results on the sandy loams common from Nambour to Caloundra than a single-ring setup. We always pre-soak the test area for at least 24 hours to simulate worst-case saturation, then record falling-head readings at 5-minute intervals until steady state is reached. For wastewater disposal fields we follow AS/NZS 1547, while stormwater basins often require the AS 1289 procedure. Before testing, we review borelogs from an estudio de mecánica de suelos to identify any restrictive layers. In coastal zones with shallow water tables we also recommend a complementary ensayo de permeabilidad en campo to cross-check the vertical and lateral flow behaviour.
Technical reference image — Sunshine Coast

Area-specific notes

Compare a site in Buderim with deep, well-drained sands to one in Sippy Downs where a clayey B horizon sits just 0.8 m below surface. The first may yield 60 mm/h; the second might drop to 8 mm/h. Relying on a single test or a soil texture lookup table can lead to undersized absorption trenches that pond after heavy rain — a common trigger for Council failure notices. The infiltration test picks up that local variability and lets the designer size the system correctly from the start.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.xyz

Watch how it works


This service complements our laboratory testing work for a complete project analysis.

Technical data

ParameterTypical value
Test methodDouble-ring infiltrometer (AS 1289) or Porchet
Typical duration per test2 – 4 hours plus pre-soaking
Measured parameterSaturated hydraulic conductivity (Ksat) in mm/h
Minimum tests per disposal area3 (AS/NZS 1547)
Applicable soil typesSands, silty sands, sandy loams
Water table requirementTest base ≥ 0.6 m above seasonal high water table

Linked services

01

Double-Ring Infiltrometer Test (AS 1289)

Preferred for stormwater basins and large communal systems. Two concentric rings minimise lateral flow error. We run three tests per zone and report Ksat at 10-minute intervals. Suitable for sandy soils and loams common in coastal Sunshine Coast.

02

Porchet (Single-Ring) Infiltration Test

Cost-effective for single-household wastewater systems. A 300 mm auger hole is filled and falling head recorded. We follow AS/NZS 1547 Appendix K. Best for sites with shallow water table or low permeability layers where a full double-ring setup is impractical.

Standards used

AS/NZS 1547:2012, AS 1289.6.8.1, AS 1726:2017

Frequently asked questions

How many infiltration tests are required for a standard house site in Sunshine Coast?

AS/NZS 1547 recommends a minimum of three tests per disposal area. For sites with variable soil profiles — common in Sunshine Coast's transition zones between coastal sands and volcanic loams — we often run five tests to capture the range.

What is the typical cost range for an infiltration test in Sunshine Coast?

A single Porchet test starts around AU$520, while a full double-ring infiltrometer suite for a stormwater basin ranges from AU$1,200 to AU$1,800 depending on the number of test locations and site access. These are indicative — final pricing depends on scope and volume.

Can I use a soil texture table instead of a field infiltration test?

No. Council compliance officers across Sunshine Coast routinely reject design rates based solely on texture tables. The local soils — often layered with clayey subsoils or with seasonal water tables — give field-measured rates that can be 50 to 80% lower than textbook values. Field infiltration testing is the only accepted method.
