Retaining Wall Design for Sunshine Coast Properties

Together, we solve the challenges of tomorrow.

READ MORE →

Sunshine Coast grew fast from the 1980s, transforming former pineapple farms and coastal dunes into suburbs like Buderim and Sippy Downs. That sandy, colluvial profile means many retaining walls we design sit on ground with variable bearing capacity. Before we touch a single drawing, we run a site investigation. In our experience, the most common mistake is assuming the topsoil tells the whole story. The real challenge lies beneath the fill. That is why we always pair retaining wall design with a calicata exploratory pit to visually log the soil layers and confirm the wall foundation depth.

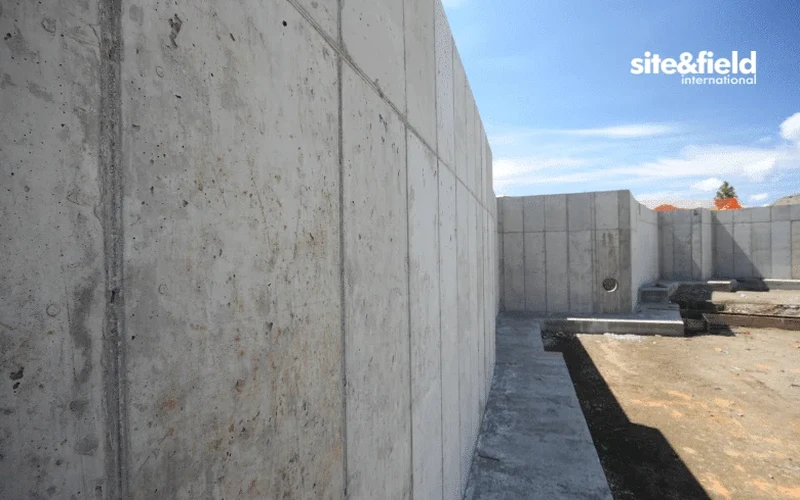

Illustrative image of Retaining wall design in Sunshine Coast
Saturated backfill can double lateral pressure. We always design for drained conditions first, then verify with direct shear data.

Scope of work

Builders often underestimate how much lateral pressure builds up behind a wall made of sandstone rubble or concrete blocks. Sunshine Coast receives over 1,500 mm of rain a year, so saturated backfill can double the horizontal load. A wall that looks fine in dry weather may bulge or tilt after a wet season. We design for drained conditions first. That means including a gravel drainage blanket and a slotted pipe at the base. If the wall is taller than 1.5 m, we incorporate a structural engineer's review under AS 4678-2002. We also check the soil's internal friction angle using direct shear testing to set realistic design parameters.
Technical reference image — Sunshine Coast

Area-specific notes

Around Noosa and Coolum, many homes sit on steep sloping blocks where the natural water table is shallow. We have seen retaining walls built without any weep holes or drainage gravel. After one cyclone, the hydrostatic pressure pushed the wall inward by 150 mm. That is why we insist on a percolation test before finalizing the design. If the soil drains slowly, we add a French drain behind the wall. Ignoring that step can lead to structural failure and costly litigation.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.xyz

Watch how it works


Technical data

ParameterTypical value
Wall height range0.6 m to 6.0 m
Design codeAS 4678-2002, AS/NZS 1170.2
Soil types commonSand, silty sand, clayey sand
Minimum foundation width0.4 x wall height
Drainage requirement200 mm gravel + 100 mm slotted pipe
Factor of safety (sliding)1.5 minimum

Linked services

01

MSE Wall Design

For walls over 3 m tall, we design mechanically stabilized earth walls using steel or geogrid reinforcement. This reduces the wall thickness and speeds up construction.

02

Piled Retaining Walls

On soft ground or near existing structures, we design bored pile walls that cantilever without anchor tiebacks. Ideal for tight access in urban Sunshine Coast lots.

Standards used

AS 4678-2002: Earth-retaining structures, AS/NZS 1170.2: Wind actions, AS 1726-2017: Geotechnical site investigations

Frequently asked questions

How much does retaining wall design cost on the Sunshine Coast?

For a residential wall up to 2 m tall, expect between AU$1.560 and AU$3.200. Taller walls or ones needing piled foundations run from AU$3.800 to AU$7.110. The exact figure depends on site access and soil conditions.

Do I need a building permit for a retaining wall in Sunshine Coast?

Yes, any retaining wall over 600 mm high requires a development approval from Sunshine Coast Council. You will also need a structural design certificate signed by a registered engineer. Our reports meet that requirement.

What soil test is most important before building a retaining wall?

A direct shear test gives you the internal friction angle and cohesion of the soil. Those two numbers control the lateral pressure. We always run that test on a representative sample from the wall footprint.
