AS 1726 establishes the procedure for oedometer consolidation testing, a method that becomes especially relevant in Sunshine Coast given the prevalence of soft estuarine clays and sandy silts along the Maroochy River floodplain. These materials exhibit moderate to high compressibility, and assessing their consolidation behaviour is essential before designing shallow foundations or embankments. A standard incremental loading oedometer test on undisturbed thin-walled samples yields the compression index (Cc), recompression index (Cr), and pre-consolidation pressure (σ'p). For sites near the Mooloolah River, we often combine this with a resistivity survey to map clay thickness, and a [MASW survey](/masw-vs30/) to correlate shear-wave velocity with overconsolidation ratio. The test procedure follows AS 1289.6.6.1, with load increments of 24 hours each to ensure full primary consolidation.
Pre-consolidation pressures in Sunshine Coast estuarine clays typically range from 80 to 180 kPa, reflecting moderate overconsolidation from historical drying.
Scope of work
The subtropical climate of Sunshine Coast—with annual rainfall exceeding 1,600 mm—maintains high groundwater tables across much of the coastal corridor from Caloundra to Noosa Heads. This moisture regime keeps near-surface soils in a partially saturated state that can shift upon loading. An oedometer consolidation test captures that shift quantitatively. We run tests on specimens trimmed from 75 mm thin-walled tubes using a fixed-ring consolidometer. For each load stage (typically 12,5; 25; 50; 100; 200; 400; 800 kPa), we record settlement every 30 seconds for the first 4 minutes, then every hour. The coefficient of consolidation (cv) is derived via the Taylor square-root-of-time method. When soft clays are thicker than 5 m, we recommend complementing the consolidation data with a stability analysis to evaluate long-term slope creep, and a test pit campaign to visually log soil fabric and root holes that can accelerate drainage.

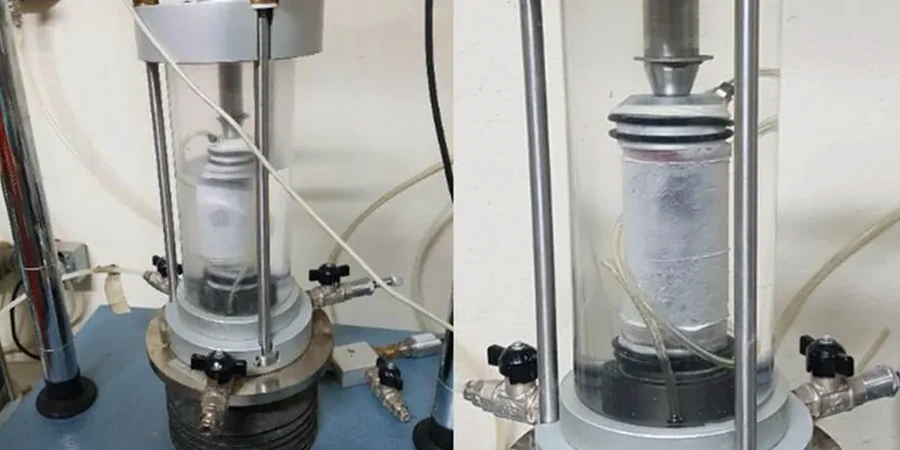

Technical reference image — Sunshine Coast
Area-specific notes
The near-surface geology of Sunshine Coast includes the Bli Bli silty clays and the Eudlo clayey sands — both units known for low drained stiffness. If the oedometer consolidation test is omitted, differential settlements in structures such as slab-on-ground homes in Buderim or embankments along the Nicklin Way can exceed 50 mm within five years. The risk is compounded by seasonal moisture fluctuations: dry winters desiccate the upper 1–2 m, creating crusty layers that mask deeper compressible zones. Without consolidation data, the settlement predicted by simple elastic theory underestimates actual creep by 30–60% in these materials.
Eight-stage loading (12.5–800 kPa) with 24-hour increments. Delivers Cc, Cr, σ'p, cv, and mv. Suitable for residential and light commercial projects on Bli Bli clays or similar soft soils.
02
Consolidation with swell-back stage
Includes a swell-back cycle after the final load to measure swelling index (Cs) and estimate heave potential. Recommended for sites on reactive clay near the Sunshine Coast hinterland where moisture changes are expected.
03
Long-term creep oedometer
Extended 72-hour load stages under the maximum expected overburden. Measures secondary compression index (Cαe) for embankments or fills where long-term settlement matters, such as the approach fills to the Bruce Highway upgrades.
This service complements our laboratory testing work for a complete project analysis.
Standards used
AS 1726-2017: Geotechnical site investigations, AS 1289.6.6.1: Standard test method for one-dimensional consolidation properties of soils, AS 4678-2002: Earth-retaining structures (settlement criteria)
Frequently asked questions
How long does an oedometer consolidation test take?
A standard eight-stage test runs 10–14 working days including sample extrusion, trimming, and report preparation. Each load stage requires 24 hours, so the total test duration is 8 days of continuous loading plus set-up and analysis time.
What is the difference between Cc and Cr in the oedometer test?
Cc (compression index) represents the slope of the virgin compression line — the rate of volume change when the soil is loaded beyond its past maximum stress. Cr (recompression index) is the slope during unloading-reloading cycles. In Sunshine Coast clays, Cc typically falls between 0.25 and 0.45, while Cr is about 0.05 to 0.10.
When is an oedometer test needed instead of a simple sieve analysis?
A sieve analysis tells you grain size distribution but nothing about compressibility. The oedometer test is required when you need to predict settlement magnitudes — for example, under a slab-on-ground on soft estuarine clay in Maroochydore, or beneath an embankment on the Sunshine Motorway. If the soil is granular and free-draining, consolidation testing is usually unnecessary.
How much does an oedometer consolidation test cost in Sunshine Coast?
The typical cost range for a standard eight-stage oedometer test is between AU$280 and AU$610 per sample, depending on the number of load stages, the need for swell-back cycles, and the urgency of reporting. Volume discounts apply when testing multiple samples from the same site.
